Remote control Resonic with an old Sony-Ericsson cell phone

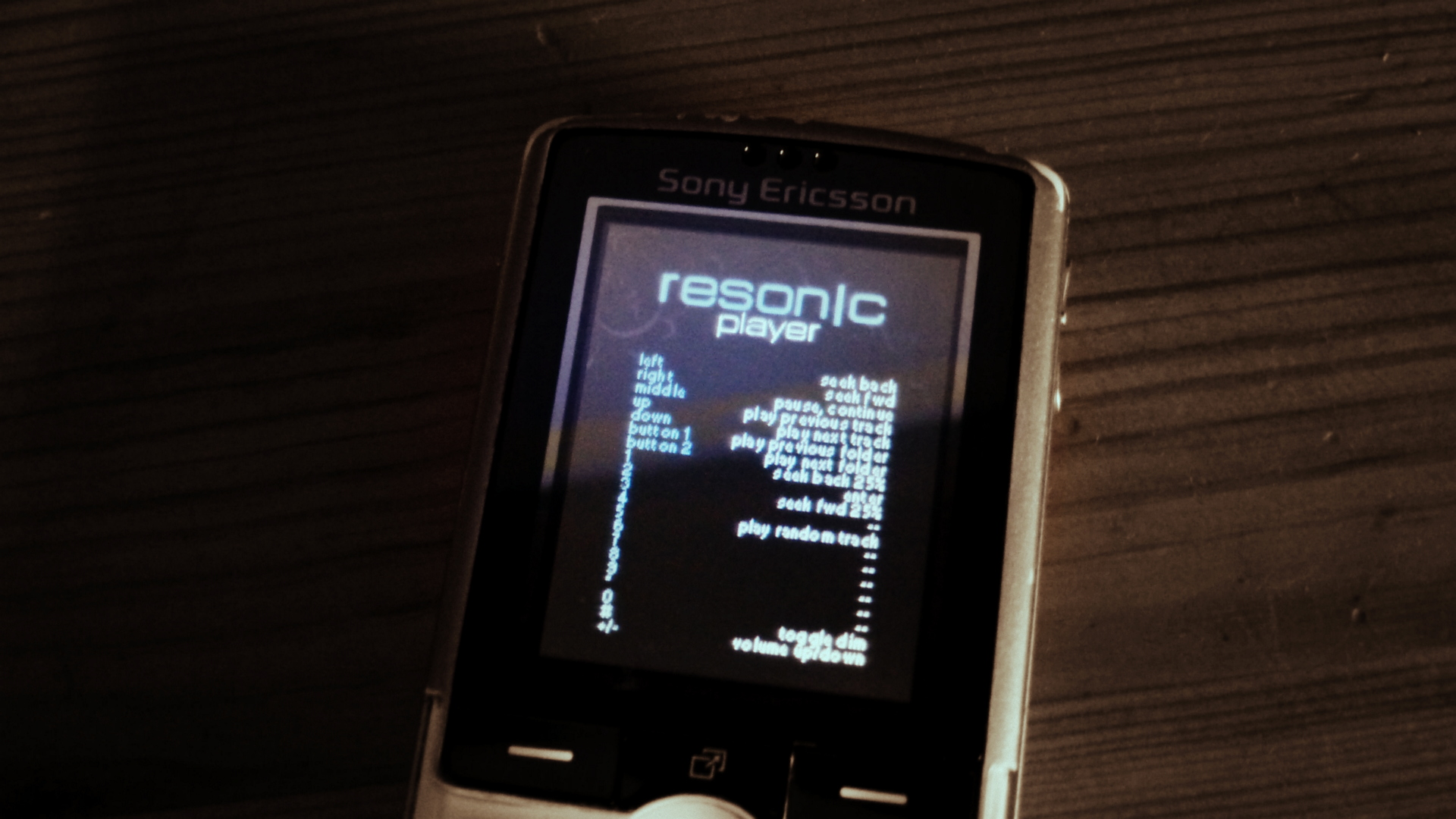

So, I stumbled upon an old photo that reminded me to share something geeky with you:

Remember the good old Sony-Ericsson K-series cell phones? Like for example the excellent K750i. Some of these cells came equipped with HID (human interface device, ie. keyboard and mouse) emulation via Bluetooth and also supported custom remote control templates.

So all you need, besides the cell phone, is Bluetooth on your PC (built into many laptops, or via USB dongle) and a single file ("Resonic Remote.hid", which is attached to this post) that you send to your old SE cell. Once you do that the phone will ask you whether you want to install and use it right away. Enable BT, pair your phone, and you're good to go.

I've been using this hack with a K750i and a USB Bluetooth dongle to control Resonic on my Desktop PC for the last two years and I have to say, for what it's worth, it's still working pretty well.

Note that some of these phones don't have a flight mode, which means you have to slide in an old (expired) SIM card. Also, they go into power saving after about ten seconds, but you can easily wake the BT connection by pressing the * button. Finally, the Resonic window has to have to focus for this to work. But after all, it's a fun hack hehe

That much being said, that doesn't mean that there isn't something else in preparation... :roll:
Attachments
Resonic Remote s-e.png
Resonic Remote s-e.png (16.46 KiB) Viewed 8684 times
Resonic Remote.hid
(20.57 KiB) Downloaded 544 times
ResonicResonic ProLA Discord
Join our homebase on Discord for chat and talk (not just about Resonic), and pre-release testing.


A user interface is like a joke: if you have to explain it, it's not that good.

Andreasvb
Moderator
Posts: 116
Joined: January 29th, 2013, 06:35
Location: Sweden

Re: Remote control Resonic with an old Sony-Ericsson cell ph

Kind of like the logo and the font.

Also a bit geeky: Controlling foobar2000 with foo_controlserver from a Telnet client, e.g. PuTTY. :D

:ugeek: Windows 10 Pro x64 / Resonic Pro - Beta 0.8.9

Tom
Liqube Audio
Liqube Audio
Posts: 982
Joined: December 12th, 2012, 19:12
First Name: Tom
Primary DAW: Live
Resonic: Pro
Location: Earth (currently)
Contact:

Re: Remote control Resonic with an old Sony-Ericsson cell ph

Heheh, true.

And the logo is of ancient times, when I just had started Resonic ^^
ResonicResonic ProLA Discord
Join our homebase on Discord for chat and talk (not just about Resonic), and pre-release testing.


A user interface is like a joke: if you have to explain it, it's not that good.

User avatar
BTGbullseye
Beta Tester
Posts: 137
Joined: March 22nd, 2013, 10:19
Location: a particular place or position.
Contact:

Re: Remote control Resonic with an old Sony-Ericsson cell ph

You should update it for use with android... lol
